Pneumatic Jack From YAQIYA

22 Feb 2019


Air Jacks are a unique design that uses compressed air to raise and lower motor vehicles quickly and easily. Their safety, reliability and speed make air jacks the ideal choice for under body servicing, wheel alignment, tyre replacement services and body repair work. There are 4 kinds of our air jacks that are suitable to use with passenger and light commercial vehicles.



The hand held models are ideal for use in body repair workshops and in road service vehicles as they are easily stored and portable. The roll-around Hustler models, with long reach handles are best suited for auto service bays and workshops.




Benefits

· Fast and friendly. Two push button valves make air jacks quick and easy to operate. Press green to raise and press red to lower. Their speed of operation over conventional jacks will significantly reduce the time required to lift a vehicle. And because they are light weight relative to their capacity, they are portable.

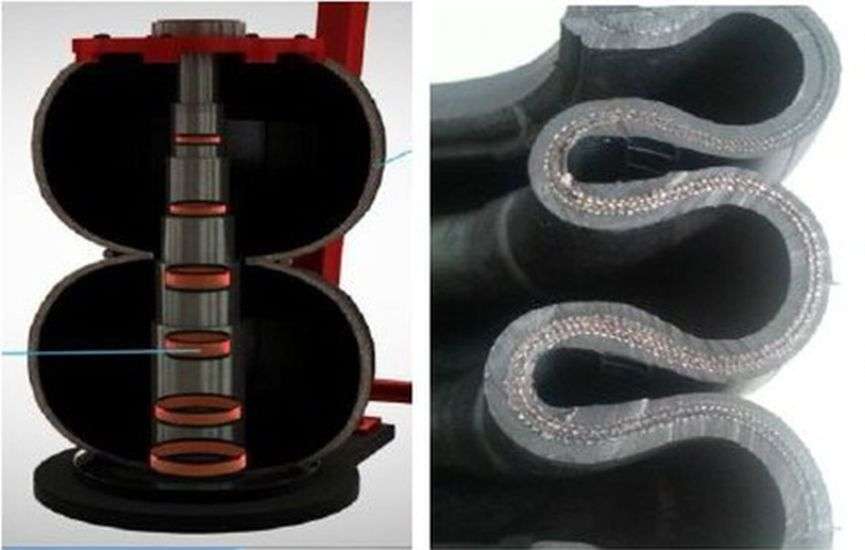

· Designed for stability. Inside the air jack there is a unique internal telescopic stabilising column. This column provides stability to the jack during elevation but still allows some lateral movement, which enables the head cap of the jack to follow the arc of the vehicle being elevated. This feature combined with a wide base gives maximum stability on hard or soft surfaces.

· Overload safety valve. As indicated in the specifications, the working pressure for air jacks is 690 kPa (100 psi). To ensure maximum operator safety, a factory set safety valve is mounted on the control manifold. The valve is set at approximately 20% more than the standard working pressure and will prevent the air jack from being accidentally overloaded or over inflated.

· Easy-care long life. Very few moving parts mean maintenance costs associated with air jacks are kept to an absolute minimum. The air springs are made of a 2-ply neoprene rubber, that is oil- and ozone-resistant and will not easily perish or crack. air jacks will not leak, deflate or become unstable. A air jack with its long and trouble-free service life is an investment in speed, safety and economy that can reduce your jack replacement and repair costs.

· Only one air line needed. Once in a lift position, the air line can be disconnected and the jack will continue to do its job. This allows the air supply to be used for any other pneumatic tools or equipment.

· Reliable. All air jacks are subject to rigorous checks during manufacture and assembly. Each jack is individually tested at the maximum recommended pressure to ensure reliability and performance as specified.

· 12-Month Warranty. The Air Jacks range also carries our standard 12 month warranty against faulty workmanship and materials, and are backed by a comprehensive service and replacement parts network.
