Wheel Indicators

INTRODUCE:

DCL Series Wheel Nut Indicators are used when the wheel nut is recessed. DCL Series combines

a loose wheel nut Indicator, with a standard dust cap for use on wheels with trims. DCL Series

indicate loosening of safety critical nuts, also offer the additional benefits that come with a wheel

nut cap for protecting the nut from weathering, corrosion and general road damage.



DCL Series Wheel Nut Indicators are widely used in industrial, agricultural, military, mining and

commercial vehicle sectors amongst others.

TECHNICAL PARAMETERS:

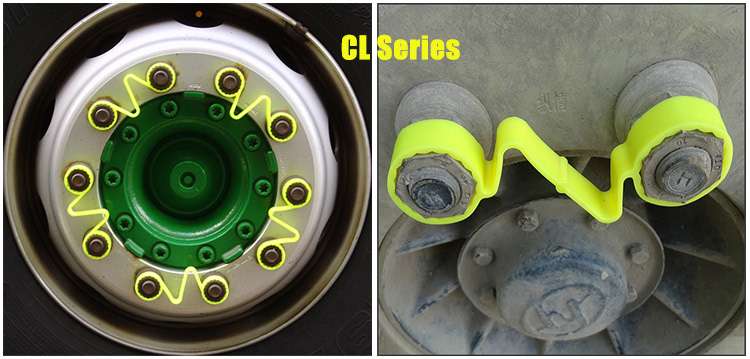

CL Series


CL Series Wheel Nut Indciator is a dual purpose loose wheel nut Indicator combined with a nut

retaining function. CLSeries attach to adjacent wheel nuts and should wheel nuts start to loosen,

will indicate so through the visual and clear bending and deformation of the link between the nuts.


CL Series provide users a clear indication of wheel nut movement whilst also offering an additional

level of safety by reducing the severity of wheel nut loosening and preventing the wheel nuts from

backing away the wheel hub completely.


Available Size: CL32, CL33, CL38

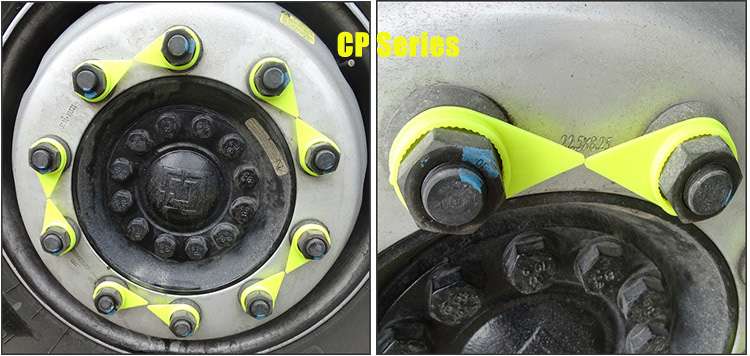

CP Series


CP Series Wheel Nut Indicators are used extensively by the road haulage industry as a visual

safety aid for enhanced fleet safety. Indicaotors clearly identify when a wheel nut has loosened allowing remedial action to be taken before a failure occurs.


CP Series Wheel Nut Indicators are manufactured to the highest quality, using impact copolymer

polyethylene, which provides stiffness & impact resistance properties.


Available Size: CP17, CP19, CP21, CP22, CP24, CP27,CP28, CP29, CP30, CP32, CP33, CP34, CP35, CP36, CP38, CP41, CP46, CP55

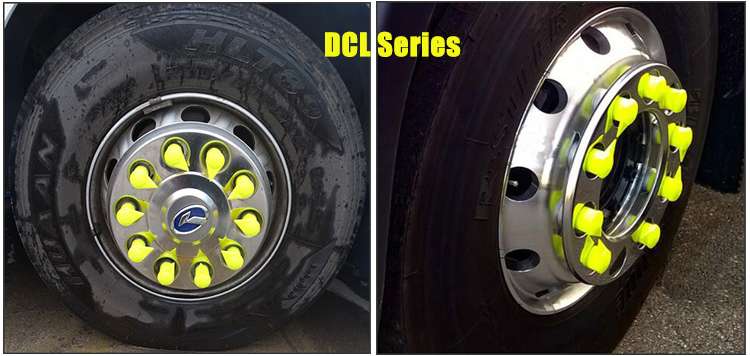

DCL Series


DCL Series Wheel Nut Indicators are used when the wheel nut is recessed. DCL Series combines

a loose wheel nut Indicator, with a standard dust cap for use on wheels with trims. DCL Series

indicate loosening of safety critical nuts, also offer the additional benefits that come with a wheel

nut cap for protecting the nut from weathering, corrosion and general road damage.


DCL Series Wheel Nut Indicators are widely used in industrial, agricultural, military, mining and

commercial vehicle sectors amongst others.


Available Size: DCL17, DCL19, DCL21, DCL22, DCL24, DCL27, DCL30, DCL32, DCL33

DCL35, DCL36, DCL38, DCL41

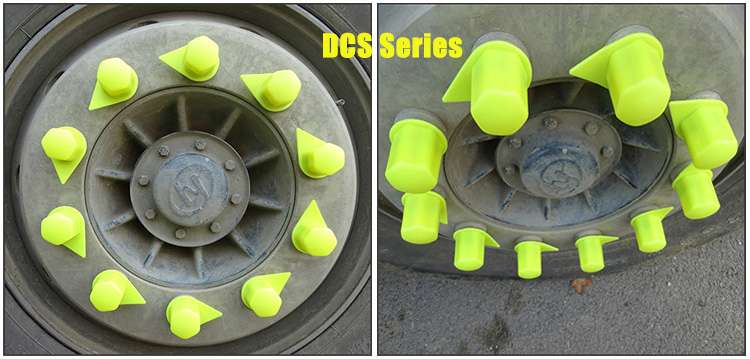

DCS Series


DCS Series Wheel Nut Indicators are used when the wheel nut is recessed. DCS Series combines

a loose wheel nut Indicator, with a standard dust cap for use on wheels with trims. DCS Series

indicate loosening of safety critical nuts, also offer the additional benefits that come with a wheel

nut cap for protecting the nut from weathering, corrosion and general road damage.


DCS Series Wheel Nut Indicators are widely used in industrial, agricultural, military, mining and

commercial vehicle sectors amongst others.


Available Size: DCS32, DCS33

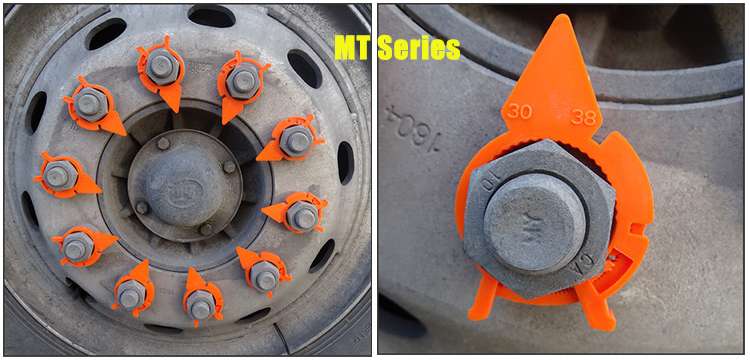

Multi Size(Adjustable) Series


Multi Size Series can be applied to any shaped nut, round edged, sharp edged, worn, new,

undersized, oversized, custom nuts including 8 or 10 sided. It can literally be clamped

around anything within the diameter range for each product. Use wisely.


The material has been designed to perform over 150°C so they will not melt prematurely under

heavy breaking conditions. The flexible material takes minimal effort to apply by hand. No

tools needed. The progressive action allows you to feel each click so you know it's secure.


Available Size: MT1824, MT3038, MT3850
